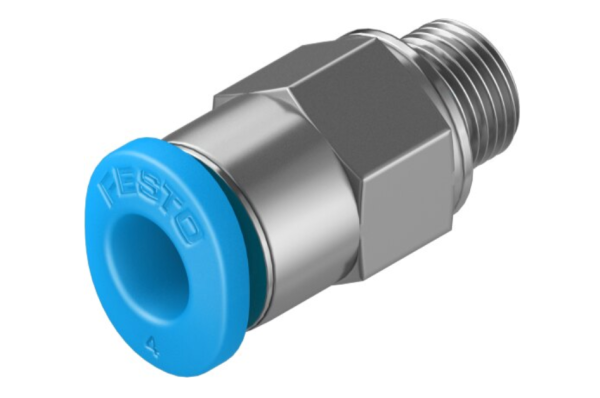

FESTO – QS-1/2-12 (10)$113.50
$113.50
| Specification | Details |
|---|---|
| Manufacturer | FESTO |
| Model | QS-1/2-12 |
| Part number | 153010 |
| Product type | Straight push-in fitting |
| Thread connection | R1/2 male |
| Tubing connection | 12 mm outside diameter |
| Nominal size | 11 mm |
| Tubing insertion depth | 23.3 mm |
| Operating pressure — full temperature range | −0.95 to 6 bar |
| Temperature-dependent operating pressure | −0.95 to 14 bar |
| Ambient temperature | −10°C to +80°C |
| Operating media | Compressed air; liquid, ice-free water |
| Water operating limits | Maximum 6 bar at maximum +50°C |
| Thread sealing | Coating |
| Housing material | Nickel-plated brass |
| Release ring material | POM |
| Tubing seal material | NBR |
| Tube retaining claw material | High-alloy stainless steel |
| Release ring colour | Blue |
| Mounting position | Any |
| Spanner size | 21 mm |
| Product weight | 44 g |
| Corrosion resistance | CRC 1 — low corrosion stress |
| Materials compliance | RoHS compliant |
