FESTO – QS-10 (10)

$114.50

- +

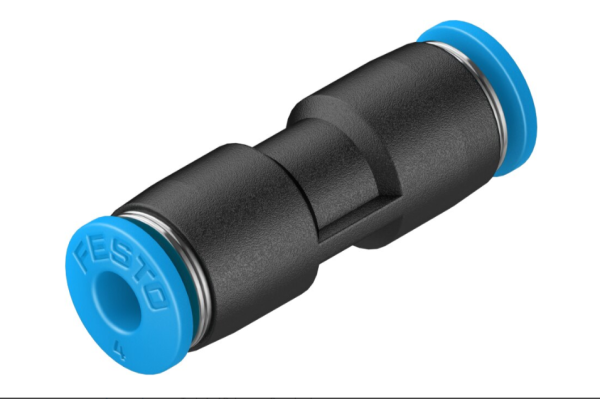

The FESTO QS-10 is a straight push-in connector joining two tubes with a 10 mm outside diameter. Its lightweight PBT housing and quick-release connections simplify pneumatic tubing installation and maintenance.
  • Straight connector design: Joins two pneumatic tubes in a direct line.
  • Two 10 mm push-in connections: Accept tubing with a 10 mm outside diameter.
  • Quick tubing connection and release: Simplifies installation and maintenance.
  • Blue release rings: Allow convenient tubing removal.
  • Lightweight PBT housing: Provides compact, durable construction.
  • Secure tube retention: Features high-alloy stainless steel gripping components.
  • NBR tubing seals: Provide sealing around the connected tubes.
  • Flexible mounting: Can be installed in any orientation.
  • Pneumatic compatibility: Suitable for lubricated and unlubricated compressed air operation.
  • Thread-free connections: Joins tubing directly without threaded adapters.
Specification Details
Manufacturer FESTO
Model QS-10
Part number 153034
Product type Straight push-in connector
Tubing connections 2 × 10 mm outside diameter
Nominal size 9 mm
Tubing insertion depth 20.2 mm
Operating pressure — full temperature range −0.95 to 6 bar
Temperature-dependent operating pressure −0.95 to 14 bar
Ambient temperature −10°C to +80°C
Operating media Compressed air; liquid, ice-free water
Water operating limits Maximum 6 bar at maximum +50°C
Lubricated operation Permitted
Housing material PBT
Release ring material POM
Tubing seal material NBR
Tube retaining component material High-alloy stainless steel
Release ring colour Blue
Mounting position Any
Product weight 16 g
Corrosion resistance CRC 1 — low corrosion stress
Materials compliance RoHS compliant
Standard pack quantity 10
