FESTO – QSC-12H (10)

$41.60

- +

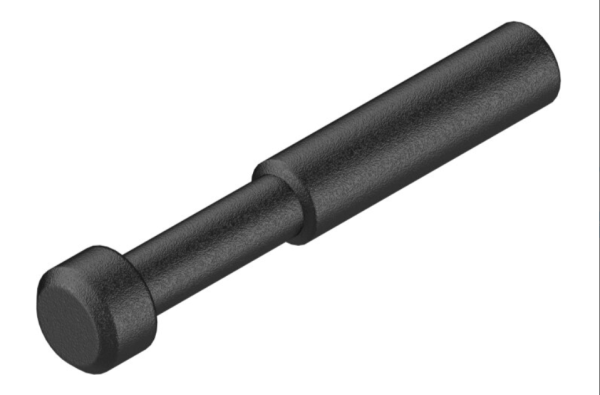

The FESTO QSC-12H blanking plug seals unused 12 mm QS push-in fitting ports to prevent compressed air loss. Featuring a lightweight PBT construction, it allows quick installation and removal during pneumatic system maintenance or modifications.

FESTO QSC-12H Product Features

  • Blanking function: Seals unused ports in compatible pneumatic push-in fittings.
  • 12 mm QS compatibility: Designed for Festo QS-12 push-in connections.
  • Push-in installation: Fits directly into the connection for quick assembly.
  • Removable design: Allows spare ports to be reopened when system requirements change.
  • Prevents air loss: Closes unused connections to maintain pneumatic system integrity.
  • Compact and lightweight: Weighs approximately 2.5 g.
  • Versatile use: Suitable for pneumatic installations, maintenance and system modifications.

FESTO QSC-12H Product Specifications

Specification Details
Manufacturer FESTO
Model QSC-12H
Part number 153271
Product type Blanking plug
Size Standard
Connection compatibility 12 mm QS push-in fitting
Operating pressure, full temperature range −0.95 to 6 bar
Temperature-dependent operating pressure −0.95 to 14 bar
Ambient temperature −10°C to +80°C
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]; liquid, ice-free water
Water operating limits Maximum 6 bar at maximum +50°C
Housing material PBT
Overall length 44 mm
Mounting position Any
Product weight 2.5 g
Corrosion resistance class CRC 1 — low corrosion stress
Materials compliance RoHS-compliant
Lubricated operation Permitted
Manufacturer pack size 10 pieces
