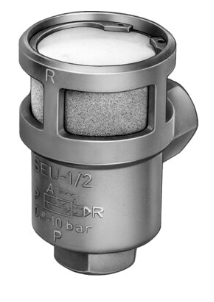

FESTO SEU-1/2

$196.63

- +
The FESTO SEU-1/2 quick exhaust valve features G1/2 connections and a built-in silencer for rapid cylinder exhaust with reduced noise. Its die-cast aluminium housing and 0.3–10 bar operating pressure range make it suitable for industrial pneumatic applications.

FESTO SEU-1/2 Product Features

  • Quick exhaust function: Releases air directly at the cylinder to support faster piston movement.
  • Built-in silencer: Reduces exhaust noise during operation.
  • G1/2 threaded connections: Connects to compatible pneumatic cylinders and equipment.
  • High exhaust flow: Provides a nominal exhaust flow rate of 4,020 L/min at 6 to 5 bar.
  • Die-cast aluminium housing: Offers a robust, lightweight construction.
  • Direct screw-in mounting: Shortens the exhaust path for effective cylinder venting.
  • Operating pressure range: Suitable for pressures from 0.3 to 10 bar.
  • Cylinder compatibility: Suitable for single-acting and double-acting pneumatic cylinders.

FESTO SEU-1/2 Product Specifications

Specification Details
Manufacturer FESTO
Model SEU-1/2
Part number 6822
Valve function Quick exhaust
Silencer Built-in
Pneumatic connection, port 1 G1/2
Pneumatic connection, port 2 G1/2
Nominal size 15 mm
Operating pressure 0.3–10 bar
Nominal exhaust flow rate, 6 → 5 bar 4,020 L/min
Exhaust flow rate, 6 → 0 bar 6,500 L/min
Nominal supply flow rate, 6 → 5 bar 4,560 L/min
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Ambient temperature −20°C to +75°C
Media temperature −20°C to +75°C
Housing material Die-cast aluminium
Seal material NBR
Mounting type Screw-in
Mounting position Any
Sound pressure level 86 dB(A)
Product weight 320 g

Lubrication: Lubricated operation is permitted. Once used with lubricated air, continued lubricated operation is required.
